LP4

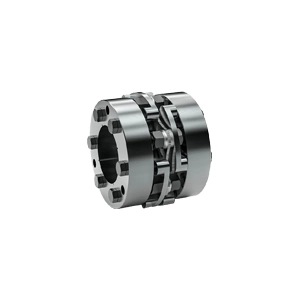

Disc pack couplingsThe LP4 heavy duty slat coupler from R+W Couplings is a single flex design and is backlash-free for reversible loading. The tapered clamping ring provides the coupling with high clamping force. The design has high torsional rigidity and makes this lamella clutch very suitable for high-speed, reverse and intermittent loading. This industry slat coupling is used for infinite life under extreme conditions. For specific questions on slat couplings or other industry couplings, contact VARIODRIVE
Implementation
Blade coupling with clamping ring
Nom. Torque
350 - 50.000 Nm
Speed
up to 11,200 rpm
Temperature range
-30 to +280 oC
Blade material
High elestic spring steel
Hub material
Steel
Peak load
Up to 2x nom. Torque
Backlash
None
Service-life
No service
Optional
ATEX
Datasheets
- ATEX instructies
- Datasheet LP4
- Manual LP koppelingen
Tabel
| LP4 Series | 300 | 500 | 700 | 1100 | 1600 | 2600 | 4000 | 6000 | 8000 | 15000 | 25000 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Elastomer insert type | S | D | S | D | S | D | S | D | S | D | S | D | S | D | S | D | S | D | S | D | S | D | |
| Rated torque(Nm) | TKN | 350 | 500 | 700 | 1100 | 1600 | 2600 | 4000 | 6000 | 8000 | 15000 | 25000 |
| Maximum torque(Nm) | TKmax | 700 | 1000 | 1400 | 2200 | 3200 | 5200 | 8000 | 12000 | 16000 | 30000 | 50000 |
| Overall length | A | 76 | 104 | 76 | 104 | 93 | 131 | 99 | 140 | 120 | 66 | 136 | 183 | 161 | 218 | 174 | 239 | 226 | 307 | 264 | 356 | 274 | on demand |
| Outside diameter(mm) | øAD | 99 | 109 | 128 | 133 | 150 | 168 | 198 | 212 | 238 | 299 | 372 |
| Outside diameter of hub(mm) | øB | 95 | 105 | 122 | 130 | 146 | 165 | 184 | 205 | 230 | 285 | on demand |
| Fit length(mm) | C | 33,5 | 33,5 | 43,5 | 46 | 56 | 63,5 | 74 | 80,5 | 105 | 123 | 124 |
| Inside diameter possible from Ø to Ø H7(mm) | D1/2 | 18-48 | 23-50 | 25-58 | 25-60 | 28-64 | 31-85 | 38-90 | 39-95 | 50-102 | 70-150 | on demand |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E | M8 | M8 | M10 | M10 | M12 | M12 | M16 | M16 | M20 | M24 | M36 |
| Tightening torque of the fastening screw(Nm) | 35 | 40 | 65 | 95 | 150 | 165 | 360 | 400 | 755 | 1200 | 72 | |
| Distance(mm) | G | — | 33 | — | 33 | — | 44 | — | 48 | — | 54 | — | 56 | — | 70 | — | 78 | — | 97 | — | 110 | — | on demand |
| Overall length(mm) | G1 | 50,3 | 50,3 | 50,3 | 50,3 | 62,5 | 66,4 | 64 | 66,4 | 81 | 77,5 | 88,5 | 77,5 | 106 | 100 | 112,5 | 110 | 148 | 142,5 | 173 | 155 | on demand |
| Fastening screw(ISO 4017) | H | 6xM8 | 6xM8 | 6xM10 | 6xM10 | 6xM12 | 6xM12 | 6xM16 | 6xM16 | 6xM20 | 6xM20 | 6xM24 |
| Tightening torque of the fastening screw(Nm) | 20 | 26 | 39 | 61 | 98 | 140 | 225 | 400 | 490 | 620 | 1180 | |
| Moment of inertia(10¯³kgm2) | Jges. | 3 | 4 | 5 | 7 | 12 | 15 | 16 | 20 | 31 | 38 | 89 | 71 | 110 | 137 | 127 | 211 | 368 | 440 | 1003 | 1248 | 1469 | on demand |
| Approximate weight(kg) | 2,4 | 3,1 | 3,0 | 3,9 | 5,1 | 6,6 | 6,1 | 7,9 | 9,7 | 12,1 | 14,4 | 17,5 | 19,9 | 25,1 | 25,9 | 32,4 | 45,4 | 54,9 | 73,3 | 92,3 | 116 | om demand | |
| Torsional stiffness (10³ Nm/rad) | CT | 120 | 60 | 160 | 80 | 260 | 130 | 300 | 150 | 420 | 210 | 580 | 290 | 9400 | 470 | 1140 | 570 | 1600 | 800 | 2800 | 1400 | 5920 | 2960 |
| Axial ± (mm) | 0,5 | 1,0 | 0,6 | 1,0 | 0,7 | 1,5 | 0,8 | 1,5 | 1,0 | 2,0 | 1,1 | 2,0 | 1,3 | 2,5 | 1,3 | 2,5 | 1,3 | 2,5 | 1,5 | 3 | 1,5 | 4 | |
| Lateral ± (mm) | — | 0,2 | — | 0,2 | — | 0,3 | — | 0,3 | — | 0,4 | — | 0,4 | — | 0,5 | — | 0,5 | — | 0,6 | — | 0,7 | — | 0,8 | |
| Angular ± (degree) | max. | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 | 0,7 | 1,4 |
| Speed max. (rpm) | 5800 | 5300 | 4500 | 4300 | 3800 | 3400 | 2900 | 2700 | 2400 | 1900 | 1.500 | |
| maximum speed(balanced) (1/min.) | 11200 | 10200 | 8700 | 8300 | 7400 | 6600 | 5600 | 5200 | 4700 | 3700 | 3.000 | |
| Material | Steel | Steel | Steel | Steel | Steel | Steel | Steel | Steel | Steel | Steel | Steel | |
| 300 | 500 | 700 | 1100 | 1600 | 2600 | 4000 | 6000 | 8000 | 15000 | 25000 |
