TX1

Elastomer couplings

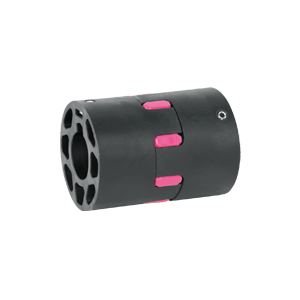

The R+W claw coupling of type TX1 Ecolight is lightweight, resulting in a low moment of inertia. Due to the utilization of fiberglass-reinforced thermoplastic and a press-fit design, the coupling is extremely rigid and resistant to corrosion. It is easy to assemble and disassemble. The TX1 coupling can be combined with various types of R+W elastomer stars and dampens vibrations. All models of R+W TX1 claw couplings are electrically insulating. . For specific questions about claw couplings or other precision couplings, please contact VARIODRIVE.

version

ECOLIGHT with keyway

Nom. Torque

0,5 - 810 Nm

Speed

tot 12.000 rpm

Temperature Range

-20 tot +100 oC

Material elastomer star

Precision cast, wear-resistant, and thermally stable polymer

Material hub

Fiberglass-reinforced thermoplastic

Peak load

Tot 1,5x nom. Torque

Backlash

None

Service-life

no service

Optional

ATEX

Datasheets

Bestelcode instructies
ATEX instructies
Catalogus TX1

Manuals

Manual EK koppelingen

Tabel

TX1 Series		2	10	20	60	150	300
Elastomer coupling size		A \| B \| C	A \| B \| C	A \| B \| C	A \| B \| C	A \| B \| C	A \| B \| C
Rated torque (Nm)	TKN	1 \| 2,4 \| 0,5	12,5 \| 16 \| 4	17 \| 21 \| 6	60 \| 75 \| 20	160 \| 200 \| 42	325 \| 405 \| 84
Fit length (mm)	c	6,5	12	25	30	35	45
Inside diameter possible from - to H8 (mm)	D1/2	5-8	6-16	10-24	16-30	19-38	20-45
Inside diameter of elastomer (mm)	DE	6,2	14,2	19,2	27,2	30	38,2
Outside diameter (mm)	B	17	32	42	56	66,5	82
Moment of inertia per hub (10-3 kgm2)	J1/J2	1,9	1,4	10	30	70	180
Approximate weight (kg)		5,9	30	80	180	270	510
Tightening torque of the clamping screw max. (Nm)	E	0,8	0,8	1,5	3	6	6
Distance (mm)	G	3	3,5	4	6	7	7
Speed standard (min-1)		12000	10000	9000	8000	7000	6000
Maximum torque (Nm)	TKmax	2 \| 4,8 \| 1	25 \| 32 \| 6	34 \| 42 \| 12	120 \| 150 \| 35	320 \| 400 \| 85	650 \| 810 \| 170
Set screws ISO 4029	E	M3	M3	M4	M5	M6	M6
Axial (mm)	max.	±1	±1	±1,5	±1,5	±2	±2
Lateral (mm)	max.	0,08 \| 0,06 \| 0,2	0,2 \| 0,17 \| 0,2	0,2 \| 0,2 \| 0,22	0,22 \| 0,22 \| 0,25	0,25 \| 0,25 \| 0,28	0,28 \| 0,28 \| 0,3
Angular (degree)	max.	1	1,5	1,5	1,5	1,5	1,5
Overall length (mm)	A	20	35	66	78	90	114
Width elastomer insert (mm)	F	5	9,5	12	14	15	18
Static torsional stiffness (Nm/rad)	CT	50 \| 115 \| 17	260 \| 600 \| 90	1140 \| 2500 \| 520	3290 \| 9750 \| 1400	4970 \| 10600 \| 1130	12400 \| 18000 \| 1280
Dynamic torsional stiffness (Nm/rad)	Ctdyn	100 \| 230 \| 35	541 \| 1650 \| 224	2540 \| 4440 \| 875	7940 \| 11900 \| 1350	13400 \| 29300 \| 3590	23700 \| 40400 \| 6090
		2	10	20	60	150	300
