High Voltage Mobiele Inverters GVI

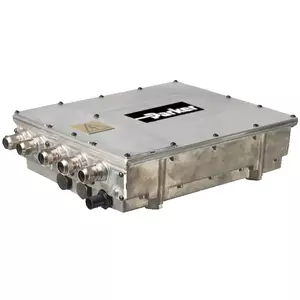

Global Vehicle InvertersThe Global Vehicle Inverter (GVI) High voltage series by Parker offers a motor control solution for mobile battery-powered systems up to 650Vdc. The GVI series represents the latest design standards for compact and reliable inverters for mobile applications. The robust IP6K9K design is excellently suited for the most rugged environments where mobile drives are used.
Together with the Parker GVM series, highly efficient mobile PMAC motors, the GVI series aims for the lowest possible installation costs, highest efficiency, and the utmost reliability, even in the most demanding mobile applications. Interfacing with the inverters is possible through digital I/O, via CAN J1939 or CANOpen. Additionally, a direct interface with Parker’s IQAN control system is possible.
Power Supply Voltage
650 VDC
nominal current
225-375 A
Peak current
320-500 A
Number of Axes per Module
1
Motor type support
Brushless AC
Feedback
Resolver
Fieldbus options
CANBus, J1939, Parker IQAN
Housing
ALU
Protection Class
IP6K9K
cooling
Glycol cooling
I/O
4DI, 1DO, 0AI, 1AO
Datasheets
- GVI Catalogus
- 3D CAD Files
- GVI High Voltage Hardware Installation Manual
- GVI CAN Message database
- GVI Configuration Manual
- Application note GVI IQAN Integration
- GVI Configuration Tool Quick Start
