Low voltage batteries
Lithium battery systemsLow voltage battery systems (<100V)
The versatile low voltage battery systems can be perfectly tailored to various applications. Options include a fixed-mounted battery, a swappable battery, or a modular system with expandable capacity.
The Battery Management System (BMS) is custom-configured and features CAN communication and digital I/O. This provides extensive possibilities for seamless integration into your application.
Voltage
24-48-96 Vdc
Capacity
80-304 Ah
Chemical
LFP
Max cont. charging current
>50 Amp
Max cont. Discharging current
>50 Amp
Peak current
>100 Amp
IP rating
IP54
Datasheets
- B024F120HG01
- B048F125CO04
- B048F050SL02
Tabel
| Type | Voltage | Capacity | Max cont. charging current | Max cont. discharging current | Peak current | Weight |
| B048F125CO04 | 48V nominal | 125 Ah | 70A | 70A | 140A (<1s) | 42 kg |
| B024F120HG01 | 24V nominal | 120 Ah | 60A | 120A | 330A (<1s) | 30,7 kg |

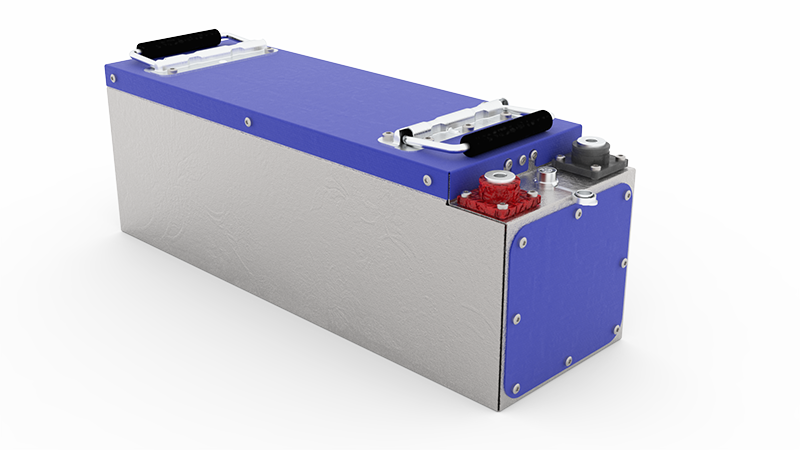

| B048F050SL02 | 48V nominal | 50 Ah | <25A | 50A | 100A(<0,2ms) | 22 kg |
Downloads
- All
- Datasheets
- Datasheets
- Datasheets
- Datasheets
