PDICL

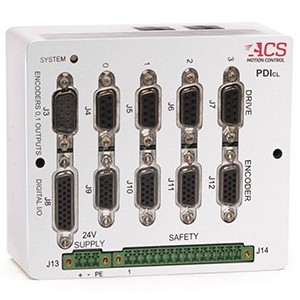

InterfacesThe PDIcl (Pulse-direction Drive Interface) offers the possibility to connect stepper motor drives and servo controllers with a Pulse-Direction interface to the EtherCAT networks that are controlled by an ACS controller and EtherCAT master.
The PDIcl contains incremental and absolute digital encoder interfaces for position verification and closed-loop control. The interface can also be used as an EtherCAT incremental and absolute encoder interface for general purposes.
Number of command axes
2/4
Current command
4x +/- 10V analog
Encoder channels
max. 4 for each combination
IO
4 digitale inputs
2 limit switches per as
4 high speed inputs
4 motor brake outputs
1 PEG Pulse output
2 analog inputs
1 analoge output
housing
DIN rail
Datasheets
- PDIcl-Datasheet
- PDIcl-CAD files
- PDIcl-Manual
