B-Primus DC-Prime

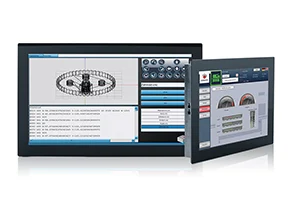

Dialog Control SystemsThe B-PRIMIS DC-Prime Dialog Control System series are HMI terminals with an integrated PLC for real-time control and regulation within industrial automation.
The CODESYS 3.5 (IEC 61131-3) development environment from 3S-Smart Software Solutions is used for programming the controller.
By default, the controllers have the Ethernet TCP and EtherCAT master communication protocols available. As an option, the Control panels can be expanded with various communication systems. For visualization, the Target Visu (VNC Client) and Web Visu (Web Client, HTML5) can be used as standard.
The B-PRIMIS DC-Prime controllers come with standard digital and analog I/O. Furthermore, various external hardware I/O interface modules can be connected. The Control panels are available in an IP65 version and are resistant to many chemical substances. The control panel is made of chemically tempered glass, featuring a clean front.
Chemically tempered glass of 2mm.
On request without a logo, in your corporate identity or completely designed according to your specifications.
Protection class up to IP65, tuned components ensure that they even work with water and dirt.
Visualization from IEC61131-3 V3.5 CODESYS Target and Web-Visu (VNC Client + HTML5)
RT-Clock
4x DI, 4x DO, optioneel 4AI
Maintenance-free units in standard design without a fan.
Available with inspections for worldwide use.
Processor
800MHz ARM Cortex A9 single core of dual core processor
Memory
256 MB RAM, 256 MB Flash, 100 kB FRAM (Retain), Micro SD-card
Display dimensions
7", 10.1", 15.6”
Communication interfaces
1x Ethernet, 1x EtherCAT, 1x USB 2.0
Software protocol
Runtime CODESYS V3.5
