AFH

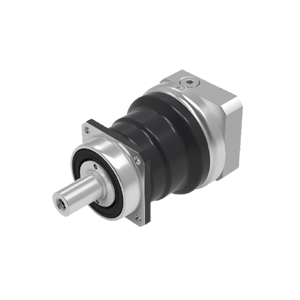

PlanetaryThe APEX AFH series is a high torque (up to 3800Nm) planetary gearbox equipped with helical gearing. The innovative design results in a compact, lightweight gearbox with high efficiency and low backlash class. The reducer housing is black lacquered steel and has an outgoing aluminum flange with a steel shaft and can be equipped with a key or spline (DIN5480).
Simple installation
Low sound level
Compact construction
Type reductor
Direct planetary
Nominal couple
24 Nm - 4,425 Nm
Nominal speed
2100-5000 rpm
Gear ratio
1-traps
3 / 4 / 5 / 7 / 10
2-traps
16 / 20 / 25/ 28 / 35 / 40 / 50 / 70 / 100
Spelling
1-traps
≤ 1 arcmin / ≤ 2 arcmin
2-traps
≤ 2 arcmin / ≤ 3 arcmin
Return on investment
1-traps
≥ 97%
2-traps
≥ 94%
Execution
Stainless steel housing, aluminum adapter plate.
