MP4Udc

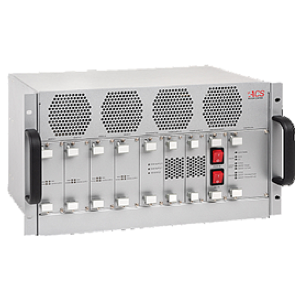

Universal Drive ModulesThe MP4Udc is a modular, rack-mounted, configurable multi-axis servo drive system. It consists of a Slave Motion Controller, power supply, and drive modules designed for OEMs with demanding multi-axis motion control applications. The drive modules can be controlled by any ACS SPiiPlus platform EtherCAT master. They utilize powerful servo control algorithms to optimize the performance of the motion system.
For the drive modules, two types can be selected: the NanoPWM for the most precise performance regarding position jitter, settling time, and speed accuracy, and the economical PWM drives. The integrated universal servo controller provides the system designer with flexibility to control virtually any type of motor. Optionally, the Safe Torque Off (STO) function is available, which complies with SIL-3 and PLe safety requirements.
Supply voltage
100-240 VAC
Nominal current
3,3-13,3 A rms. Peak
peak current
10-40 A rms. Peak
Number of axes per module
2 to 8
Motor type support
Brushless AC, Brush DC, Voice coil, Stepper
Feedback
Incr. Encoder, SinCos Encoder, Biss-C, EnDat, SSI
Fieldbus options
EtherCAT, Ethernet/IP, ModBus
Safety options
STO
Housing
Metal IP20
I/O
4DI, 1DO, 4AI, 4AO
programming
ACSPL+
Braking resistor
External
